If you've ever watched a bait boat's hopper door swing open and dump a kilo of pellet in exactly the wrong spot — or worse, watched it not open at all — you already know the release mechanism is the single most failure-prone part of the whole boat. Everyone talks about range, GPS accuracy and hull capacity, but almost nobody explains what's actually holding that door shut, what makes it let go on command, and why it eventually stops doing either reliably. That's the gap this guide fills, alongside our best RC bait boats roundup for anglers comparing full packages.
There are really only three ways engineers have solved the "hold bait, then release bait on command" problem: a servo-driven mechanical latch, an electromagnetic clamp, or a magnetically-retained pin. Each has a different failure mode, a different maintenance burden, and a different level of control over how the bait actually leaves the hull. Manufacturers rarely explain the tradeoff because it isn't flattering to any single design — servo systems jam, magnets burn out, and even the "no-moving-parts" designs still need seals that fail. Understanding which mechanism you're buying, not just how many hoppers it has, is the difference between a boat that works for years and one you're stripping down on the bank.
This guide breaks down how hopper release and line/rig release actually function mechanically, walks through the failure modes owners report most often, and ranks the best mechanisms across price segments — from sub-£200 servo boats to the no-servo magnetic-pin design that's quietly become the reliability benchmark in the class. It's aimed at buyers comparing systems before they spend, and at existing owners trying to diagnose why a hopper won't open or a rig won't drop cleanly.
Quick Reference: Release Mechanisms at a Glance
| Mechanism | How it holds | How it releases | Strength | Weakness |
|---|---|---|---|---|
| Servo-actuated trapdoor | Servo horn drives a pin or crank arm | PWM signal from a transmitter channel retracts the pin | Progressive/metered release possible | Most failure-prone; bait jams the mechanism, wiring corrodes |
| Electromagnetic release | Energized coil clamps the door shut | De-energizing the coil drops the door instantly | No mechanical catch to jam; near-instant | Binary only (no metering); coil burns out if you hold the trigger |
| Magnetic-pin (no-servo) | Magnetically-retained pin holds a ball-bearing hatch | Releasing the magnetic hold drops the pin, hatch swings open | No servo to fail; very low long-term maintenance | Premium price point, limited to one manufacturer's platform |

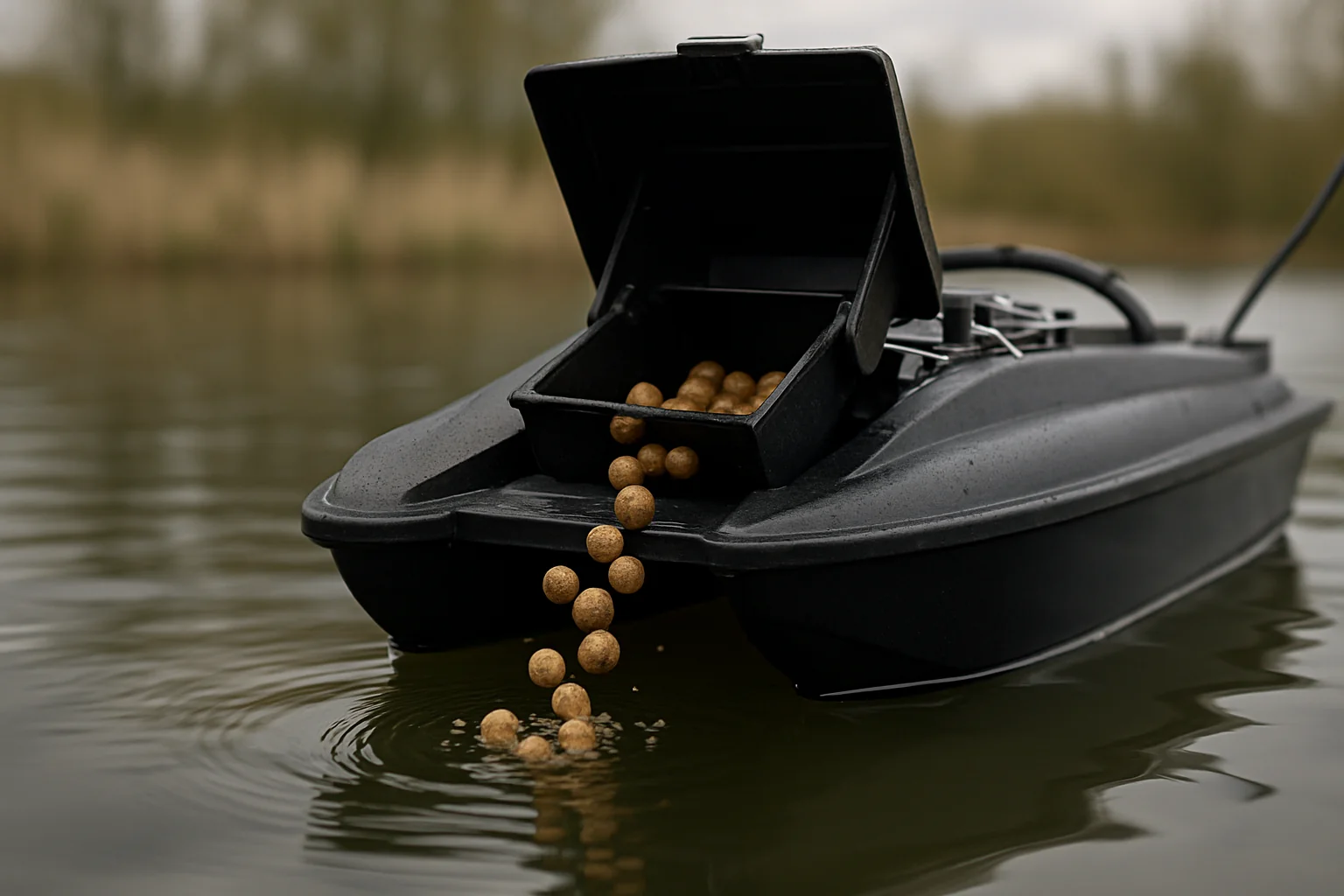

How Hopper Release Actually Works
Every bait boat hopper is, mechanically, the same basic idea: a compartment with a hinged door in the hull floor, held shut against the weight of the bait by some kind of latch, and opened on command from the transmitter. What differs between a £150 boat and a £1,700 one is what's doing the holding and letting go.
Single-hopper trapdoor designs are the simplest and still common on entry-level boats. One compartment, one door, one actuator. Anatec's PAC Starter is a clean example of the classic version: a pin holds the hopper door shut, and flipping a switch on the remote drives a servo that retracts the pin, releasing the door under gravity and the bait's own weight. It's a one-shot dump — everything goes at once, in one spot. Fine for tight baiting over a small area, useless if you want to spread bait or separate a rig from loose offerings.
Dual-hopper systems are the meaningful upgrade, because they let you do what serious carp anglers actually want: drop free bait and a hookbait/rig separately, at different points, so the rig sits on the edge of the bed rather than buried in the middle of it. The Angling Technics Microcat HD, Toslon X Boat, Deeper Quest and Boatman Actor Plus all run two independently triggered compartments. The Boatman's "bomb-bay" doors are a clever hybrid — they can act as one large central hopper or be split to run as two independently controlled ones.
Triple-hopper setups split into two very different products depending on price tier. Budget Amazon boats (SINJEE, AHWZ, CRESEA, Kreiaoer) use three roughly equal bait chambers, mostly to let you carry more total bait or separate mixes. Deeper's Quest takes a genuinely different approach: two wet-bait hoppers plus a small, separate 160ml dry rig hopper that keeps a PVA or solid bag dry and untangled during the run out. That's a real mechanical distinction, not just an extra compartment — it solves a specific rig-presentation problem rather than adding bait volume.
The Three Actuation Technologies, Compared
This is the part almost no buying guide covers, and it's the actual engineering argument happening inside the niche right now.
Servo-actuated release is still the most common approach across the mid-market. A standard hobby servo — commonly a metal-gear HD micro or standard servo — takes a PWM signal on a dedicated transmitter channel. Pushing or holding the stick drives the servo horn, which either retracts a locking pin or rotates a crank arm connected to the door. DIY builders retrofitting non-bait boats often use cranked steering arms borrowed from RC cars, with the servo mounted to the side of the hopper and travel endpoints set in the transmitter so a slow dial turn opens the door gradually rather than all at once. That progressive control is the servo's real advantage — you can meter the release instead of dumping everything in one go. Carplounge's powered BaitSpiral pushes this further still, using a geared conveyor motor to auger bait out steadily for spreading rather than dumping.
The tradeoff is reliability. Servos are the component owners report failing most often — bait pellets or wet ground bait jam in the mechanism, and the motor itself is a small, sealed unit that doesn't tolerate grit or moisture well over hundreds of open/close cycles. Manufacturers like New Direction have specifically redesigned hopper doors ("ND2") to reduce jamming risk from small bait.
Electromagnetic release replaces the moving latch with a coil that clamps the door shut when energized. Cutting power to the coil drops the door instantly. Waverunner's Atom uses this for its hopper, plus a separate patented magnetic release for the hook/rig at the rear. The appeal, per aftermarket electromagnet supplier BearCreeks, is that there's no mechanical catch to jam — the door "opens quickly, quietly and above all always." It's also a binary system: fully open or fully shut, no metering. And it has its own failure mode — holding the joystick down to keep the coil energized burns out the magnet and can damage the wiring, which is exactly the warning BearCreeks gives its customers.
Magnetic-pin release is Carplounge's answer, used across the RT4 line and deliberately built to avoid both of the above. The hatch runs on ball bearings and is held shut by a pin retained magnetically; releasing the magnetic hold drops the pin and the hatch swings open. Carplounge is candid about why they moved away from servos: bait "frequently gets stuck" in a servo-driven hatch, and in their view "servo motors are known to be some of the most fragile parts of bait boats." They cite over 14,000 RT4 units in the field as evidence the approach holds up. It's currently a single-manufacturer solution and sits at the top of the price range, but it's the closest thing this niche has to a maintenance-free release mechanism.
The honest takeaway: there's no single winner. Magnetic-pin and electromagnetic systems are lower-maintenance for the simple open/close job. Servos and augers are still the only way to meter bait or spread it progressively rather than dumping it. Which one you want depends on whether you value reliability or control more.
Line and Rig Release: A Separate System Entirely
Hopper release and hook/rig release are frequently lumped together in marketing copy, but they're mechanically distinct systems solving different problems. The hopper drops loose bait. The rig release holds and drops the actual hookbait and lead, usually via a sprung clip, a servo-driven relay pin, or a magnet at the rear (or underside) of the hull, triggered on its own transmitter channel. Running them separately is what lets you present a hookbait on the edge of a bed of free offerings rather than in the middle of it — the entire point of using a bait boat over just casting.
The mechanism only delivers an accurate drop if the line itself is managed correctly, and this is where most rig-release complaints actually originate — not in the hardware. If the line between rod tip and boat is taut at the moment of release, the rod tip acts as a hinge and the lead swings away from the boat rather than dropping straight down, landing some distance from where you intended. In any current or depth, the unweighted freebies and the leaded rig also sink at different rates and can separate before they hit bottom. The practical fix experienced anglers use is to lift the rod tip and then drop it to leave slack in the line just before triggering the release — a technique, not a hardware upgrade. GPS autopilot features like Boatman's "Bait Smart Release" or Toslon's "Tap-to-Drop" automate the navigation and the trigger timing; none of them solve the line-slack problem, because that's physics, not electronics.
On the simplest boats — Fish Fun Co.'s "RC Fishing Pole" line, for instance — the rig is held by friction release pads rather than a proper mechanical catch, and pops free on a transmitter trigger or a tug. It's the crudest version of rig release but it works, and it's cheap.
Best Mechanisms by Price Segment
Premium (£1,200+) — Best mechanical reliability
Carplounge RT4 is the reliability benchmark in the class. Two 2.5L hoppers (5L / 4–5kg total) each with independent magnetic-pin release, plus two separately controllable rig-release couplings as standard — hopper and hook release both get the no-servo treatment. It runs a twin jet drive rather than open propellers, another deliberate reliability choice. Glass-fibre-reinforced ABS hull, 36-month warranty, and a claimed 11–16 km range per battery set. It's built-to-order and not sold on Amazon US; specialist retailers are the buy path — search current listings on Amazon.
Angling Technics Microcat HD runs a more conventional twin servo/relay trapdoor system across two hoppers, 4kg total payload — the highest capacity in this tier — with ultrasonic-sealed, zero-maintenance propeller motors and a 120+ minute runtime. It's UK-built with lifetime servicing support, and owner reports on FishingMagic are consistent about where it fails: the adhesive seal pad around the hopper mechanism can come unstuck and let water in, and the door servo has been reported failing in the open position after the boat sat uncharged and the wiring corroded. Neither is a design flaw so much as a maintenance item — re-glue the seal proactively and keep the batteries topped up in storage. Search current listings.
Deeper Quest is the newest premium entrant and the only one with a genuinely different hopper architecture: two 1.5L spring-loaded hoppers plus a separate 160ml dry rig hopper for a PVA or solid bag. Reviewers describe the spring-loaded hoppers as responsive and opening cleanly even under load. It pairs the release mechanism with built-in CHIRP sonar and 1-metre GPS accuracy, though as Deeper's first bait boat it doesn't yet have the multi-year reliability track record of the AT or Carplounge platforms. Search current listings.
Mid-range (£500–£900) — Best value-to-reliability ratio
Waverunner Atom is the clearest electromagnetic-release option in the mid-market: a 1.5kg hopper with no mechanical catch to jam, plus a separate patented magnetic hook release at the rear. Confirmation LEDs flash on both hopper and hook release, and a fail-safe cuts one motor to spin the boat back into range if signal is lost. The catamaran ABS hull uses a silicone gasket seal and stainless bolts rather than adhesive pads. The one real weakness is coil burnout from holding the trigger too long — a habit worth breaking immediately if you buy one. Search current listings.
RidgeMonkey Hunter 750 introduced fully top-loading hoppers — no reaching underneath the boat to reload — with an independent rig release so bait and rig can go together or separately. Early units drew complaints about sitting low in the water and small hopper capacity; later reviews are more favourable on the top-loading convenience once initial reliability issues were ironed out. Twin quiet motors and USB-C charging round it out. Search current listings.
Boatman Actor Plus / MK4i is the value pick of the mid-tier: bomb-bay doors that convert between one large hopper and two independent ones, 3kg capacity, and — unusually — screw-assembled construction rather than glued, which matters a lot when a seal or servo eventually needs replacing. GPS-triggered "Bait Smart Release" activates the hopper automatically at a saved waypoint. Search current listings.
Budget (Amazon-available, under £250 equivalent) — Best for a first boat
The serious specialist brands above are almost entirely UK/EU products and don't show up on Amazon US. If you want an Amazon-purchasable option with easy returns on a DOA unit, you're looking at a class of generic Chinese GPS triple-hopper boats — SINJEE, AHWZ, CRESEA and Kreiaoer among them. All run a similar servo/motor-actuated tailgate-door mechanism across three compartments, dual motors with gyroscope yaw correction, and basic GPS waypoints with auto-return on low battery or lost signal.
- SINJEE RC Fishing Bait Boat with GPS — triple hopper, dual hot-swappable batteries, four GPS waypoints, prop guards on a sealed ABS hull.
- AHWZ GPS Bait Boat — triple hopper, up to 40 waypoints, gyroscope-corrected dual motors.
- Kreiaoer GPS Bait Boat — triple hopper plus an anti-detach rear release for the rig.
- CRESEA Carp GPS Bait Boat — servo triple-bin hopper, similar spec class.
Treat these as repairable starter boats rather than long-term investments. The recurring complaints across the class are hopper doors that stop opening reliably, water finding its way to an exposed PCB near the drain plug in mild chop, and the occasional dead-on-arrival motor — all things Amazon's return policy handles better than a specialist importer would.
Retrofit and add-on options
If your boat's stock release is the weak point rather than the boat itself, a few standalone products are worth knowing about. BearCreeks' electromagnetic hopper retrofit kit fits a wide range of hulls — Waverunner, Anaconda, KINCARP and others — and replaces a failing servo latch with the same electromagnetic approach used on the Atom. On the opposite end, the mechanical Bait Boat Pod (@WUBS-X) is a purely non-electronic wind-up spreader that fits inside the hopper of an RT4, Toslon X, Deeper Quest and several other premium hulls, dispersing up to 600g of bait over a 6-metre-plus diameter instead of dumping it in one pile — solving the same "heaps of bait spook pressured fish" problem Carplounge's powered BaitSpiral targets, without adding any electronics to fail. At the cheap end, Fish Fun Co.'s clip-on Bait Bucket is a cheap mechanical chumming attachment for any of their RC fishing boats.
Common Failure Modes and How to Prevent Them
| Failure | Likely cause | Prevention |
|---|---|---|
| Servo burns out or won't retract | Bait residue jamming the mechanism, or corroded wiring from prolonged storage discharged | Rinse and dry the hopper door and hinge area after every session; keep batteries topped up in storage rather than left flat |
| Door fails in the open position | Servo mechanical failure | Carry a spare servo for servo-actuated boats; treat it as a wear part, not a permanent fixture |
| Water ingress around the release mechanism | Adhesive seal pad around the hopper degrading over time | Check and re-glue the seal proactively rather than after a leak appears |
| Electromagnet stops holding | Coil burnout from holding the release joystick down | Trigger and release — never hold the stick to keep the coil energized |
| Hopper door jams shut with wet bait | Small or wet pellets wedging in the door mechanism | Use drier bait mixes where possible; some manufacturers sell redesigned doors specifically to reduce this |
| Rig lands away from the bait | Taut line at the moment of release, or current separating rig from freebies | Lift the rod tip and drop it to leave slack immediately before triggering release |
Which System Should You Buy?
If you want the lowest long-term maintenance and money isn't the limiting factor: the magnetic-pin approach (Carplounge RT4) has the strongest reliability argument of anything in this guide — it removes the single component owners complain about most.
If you want proven UK build quality and don't mind servicing a servo occasionally: the Angling Technics Microcat HD's capacity and support network make the servo tradeoff worth it.
If you want no-jam reliability without the premium price: the Waverunner Atom's electromagnetic hopper and hook release cover most of what the RT4 does at roughly a third of the cost — just don't hold the trigger.
If you're buying your first boat and want an easy return if it arrives faulty: one of the Amazon-available GPS triple-hopper boats gets you into the category for a fraction of specialist pricing, with the understanding that it's a starter unit, not a decade-long investment. Pair it with our RC boat battery guide before you swap in a higher-capacity pack, and check our ESC guide if you're upgrading the drive motors alongside the release hardware.
Frequently Asked Questions
Q: What's the difference between hopper release and line release on a bait boat?
Hopper release drops loose free bait from a compartment in the hull. Line (or rig) release is a separate mechanism that holds and drops the actual hookbait and lead, usually on its own transmitter channel, so you can place the rig away from the pile of free offerings rather than in the middle of it.
Q: Are electromagnetic hopper releases more reliable than servo-driven ones?
For the simple open/close function, yes — there's no mechanical catch to jam with bait residue. The tradeoff is that electromagnets are binary (fully open or shut, no metering) and the coil can burn out if you hold the release trigger down instead of tapping it.
Q: Why did my bait land away from where I dropped it?
Almost always line management, not the release mechanism itself. If the line between the rod tip and the boat is taut when the rig releases, the rod tip acts as a hinge and the lead swings away from the intended spot. Lift the rod tip and drop it to leave slack just before triggering the release.
Q: Do I need a boat with GPS for reliable bait placement?
GPS improves navigation back to a saved spot — it doesn't affect the reliability of the release mechanism itself. A boat with a well-built servo, magnet, or magnetic-pin release and no GPS will place bait just as accurately as a GPS boat with a poor release mechanism; GPS just makes returning to that spot repeatable.
Q: Is a dual-hopper boat worth the extra cost over a single hopper?
For serious carp fishing, yes. A single hopper only lets you dump everything in one spot. A second, independently controlled compartment lets you separate the hookbait/rig from the free offerings — the core tactic a bait boat is meant to enable.
Q: How much range do bait boats actually get in real use?
Manufacturers commonly claim 400–500 metres, but experienced owners treat that as marketing. In practice most anglers operate within roughly 100 metres, partly because visual tracking of the boat becomes unreliable well before the claimed range limit.
Conclusion
The mechanism matters more than the spec sheet suggests. A boat with three hoppers and a big claimed range is only as good as the latch holding each door shut — and right now there are exactly three ways manufacturers solve that: a servo you'll eventually service, an electromagnet you shouldn't hold energized, or a magnetic pin that mostly just doesn't fail. None of them is free of tradeoffs, but knowing which one you're buying tells you more about how the boat will behave in three years than any capacity figure does.
If you're buying your first boat, start with an Amazon-available GPS triple-hopper unit and treat it as a starter — the return policy alone makes it the sensible entry point. If you're upgrading, the choice comes down to how much you value metered control (servo/auger) versus walk-away reliability (electromagnet or magnetic-pin). For the full range of hulls, motors and price points, our best RC bait boats guide and best RC fishing boats roundup cover the complete packages this article's mechanisms are built into.
